| Product SKU | TL-VIGI C440HP-2.8 |
| Brand | TP-LINK |
| Availability | In Stock |
| Quantity |
|

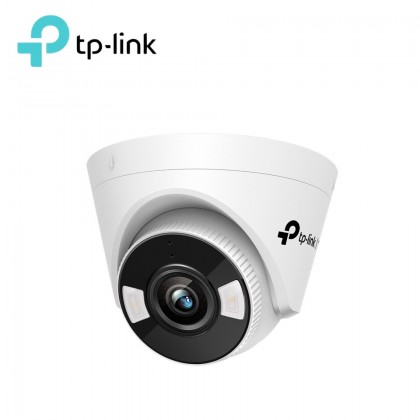

VIGI 3MP Turret Network Camera - VIGI C400HP
4MP Ultra-High Definition - The VIGI C440 comes with 4MP-more than enough pixels to pick up some of the more discrete details.
24h Full-Color - Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
H.265+ Smart Coding - Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
PoE/12V DC - Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Remote Monitoring - Manage your security from the palm of your hand with the VIGI app.
Specifications
A) Camera
| Image Sensor | 1/3” Progressive Scan CMOS |
|---|---|
| Lens | Fixed focal lens (2.8 mm / 4 mm) |
| Aperture | 2.8 mm - F1.6 4 mm - F1.6 |
| Lens Mount | M12 |
| Viewing Angle | (2.8 mm) Horizontal FOV - 102°, vertical FOV - 55°, diagonal FOV - 122° (4 mm) Horizontal FOV - 79°, vertical FOV - 43°, diagonal FOV - 93° |
| Day/Night Mechanism | IR Cut Filter |
| IR Working Distance | 30m |
| Illumination Distance | 30m (LED) |
| Minimum Illumination | 0 lux with IR/white Light |
| Pan/Tilt Range | Pan - 0° to 360°, Tilt - 0° to 85°, Rotate - 0° to 360° |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
B) Network
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
C) General
| Package Contents | VIGI Network Camera Quick Start Guide Power Adapter Mounting Accessories |
|---|---|
| Operating Temperature | -30–60 °C |
| Certifications | CE, FCC, RCM, BSMI, VCCI, RoHS |
| Dimensions( H X W X D ) | 123 × 123 × 84 mm |
| Material | Plastic |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
| Power Consumption | 12V DC - Max 5.5W PoE - Class 0 |
D) Video/Image
| Video Compression | Main Stream - H.265+/H.265/H.264+/H.264 Sub-Stream - H.265/H.264 |
|---|---|
| Frame Rate & Resolutions | Main Stream Frame Rate - 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution - 2560x1440, 2304x1296, 2048x1280, 1920x1080 Sub-Stream Frame Rate - 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution - 640x480, 352x288, 320x240 |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Video Bit Rate | Main Stream - 256 Kbps to 4 Mbps Sub-Stream - 64 Kbps to 512 Kbps |
E) Smart Feature-Set
| Smart Event | Area Intrusion Detection, Line-Crossing Detection |
|---|---|
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( illegal login) |
| Linkage Method | Trigger Notification - ONVIF, HTTPS |
| Region of Interest | 1 Region |
F) Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
|---|---|
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Button | Reset Button |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
Warranty Limited 2-year warranty
